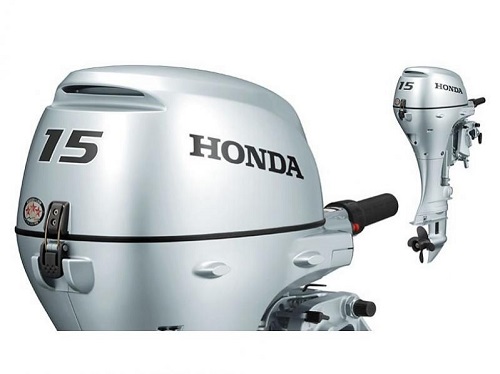

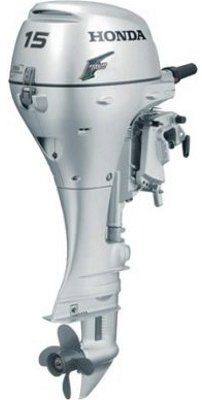

15.0 hp Short Shaft 4stroke Honda BF15DΚ2 SHU Outboard Engine

1,959.00 excl. VAT and shipping

Engine

BF15 BF20
Type 4-Stroke SOHC 2 Cylinder/4 Valves 4-Stroke SOHC 2 Cylinder/4 Valves
Displacement 350 cc (21.4 cubic inches) 350 cc (21.5 cubic inches)
Bore & Stroke 59 mm x 64 mm (2.3 x 2.5 inches) 59 mm x 64 mm (2.3 x 2.5 inches)
Full Throttle RPM Range 4,500-5,500 RPM 5,000-6,000 RPM
Rated Power 15 HP @ 5,000 RPM 20 HP @ 5,500 RPM
Cooling System Water Cooled Water Cooled
Fuel Delivery 1 Carburetor 1 Carburetor
Ignition System PGM-IG PGM-IG
Starting System Electric/Recoil Electric/Recoil
Exhaust Through Hub Through Hub
Lubrication Wet Sump Wet Sump
Trim Range 4 Stage 8°-12°-16°-20° 4 Stage 8°-12°-16°-20°
Tilt Range 72° 72°

Drive

BF15 BF20
Gear Ratio 2.08:1 2.08:1
Gear Shift F-N-R F-N-R

Equipment

BF15 BF20
Alternator with voltage regulator (Electric Start) 12-Amp (148 watt) 12-Amp (151 watt)
Alternator with voltage regulator (Manual Start) 6-Amp (76 watt) 6-Amp (76 watt)
Propeller 4-Blade Aluminum 4-Blade Aluminum
Diameter x Pitch, Standard 9¼ x 10 inches 9¼ x 10 inches
Diameter x Pitch, Power Thrust 10 x 7⅝ inches 10 x 7⅝ inches
Power Tilt Available Available
Oil Pressure Alert Standard Standard
Temperature Alert Standard Standard
Rev-Limiter Standard Standard

Dimensions

BF15 BF20
Overall Width 350 mm/13.8 inches 350 mm/13.8 inches

Transom Height

BF15 BF20
S Type 381 mm/15 inches 381 mm/15 inches
L Type 508 mm/20 inches 508 mm/20 inches
X Type 635 mm/25 inches NA

Dry Weight

BF15 BF20
S-Type 47 kg/104 lbs. 47 kg/104 lbs.
L-Type 50 kg/110 lbs. 50 kg/110 lbs.
X-Type 52 kg/115 lbs.
SKU: BF5DΚ2 SHU Category:
