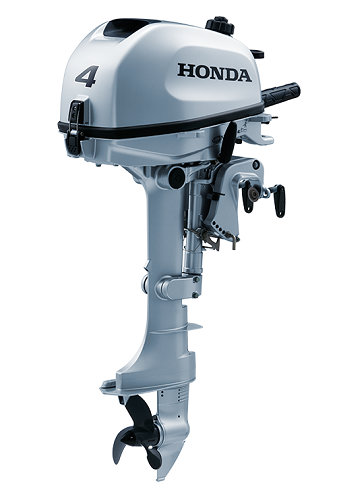

04.0 hp Short Shaft 4stroke Honda BF4AH SHNU Outboard Engine
1,204.00€ excl. VAT and shipping
| Type |
4-Stroke, OHV, 1 Cylinder / 2 Valves, water cooled |
| Displacement |
127 cc / 7.75 cubic in. |
| Bore & Stroke |
60 mm x 45 mm (2.36 x 1.77 in.) |
| Full Throttle RPM Range |
4,500-5,500 RPM |
| Propshaft Rated Horsepower (HP) |
4 HP @ 5,000 RPM |
| Cooling System |
Water cooling with thermostat |
| Fuel Delivery |
1 Carburetor |
| Recommended Fuel |
Unleaded Gas. (Min. Pump Octane 86) |
| Tank Capacity |
1.5 L (0.33 Imp. gal.) |
| Ignition System |
Digital CDI |
| Starting System |
Recoil |
| Exhaust |
Under Water, above propeller |
| Lubrication |
Trochoid pump pressure lubrication |
| Recommended Oil |
SAE 10W30 FC-W® or API service classification SJ or later |
| Oil Capacity |
0.55 L (0.48 Imp. qt) |
| Transom angle |
5-Stage adjustment (4°-8°-12°-16°-20°) |
| Tilt up Angle (when transom angle at 12°) |
3-Stage adjustment (18°- 34°- 58°) |
| Steering Angle |
45° right and left |
