The battery charger is conform to general rules for electrical devices on the boat or ship. It is specially used for the automatic compensating charge the battery which are used on the boat or ship.

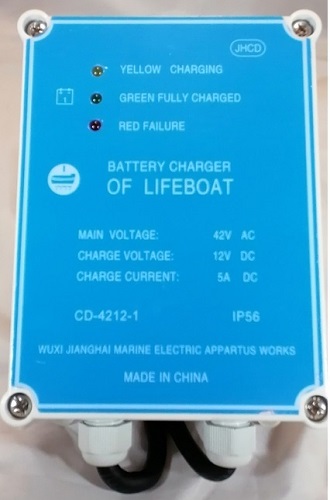

JHCD CD-4212-1 Battery Charger
Lifeboat battery charger, it is specially used for the automatic compensating charge the battery which are used on the lifeboat or ship.
• Brand: JHCD, JIANGHAI SHIPPING ELECTRIC
• Yellow Lamp: Charging, CD4212-1 will charge automatically if the voltage of the battery is lower than 13.3V.
• Green Lamp: Fully Charged, CD4212-1 will stop charge automatically if the voltage of the battery is charged to 14.4V.
• Red Lamp: Failure, CD4212-1 red lamp will flash there is open circuit, reverse polarity, short circuit.
• Main Voltage: 42V AC
• Charge Voltage:1x12V DC
• Charge Current: 1x5A DC
• Protection: IP56
• Trouble Shooting:CD-4212-1 yellow lamp flashing, the battery is aging, change the battery.
• Trouble Shooting: CD-4212-1 red lamp flashing, the output cable is connected reversibly to the battery.
• Warning: CD4212-1 lifeboat battery charger can only be used to make compensating charge for the battery.
• Important Information: Always disconnect input VAC (mains) before connecting or disconnecting batteries.
• Working Temperature: -25℃ ~ 55℃
• HS Code: 8504409999
• Dimension: 160 x 120 x 85 mm
• Weight: 3Kg
• Class Certificate: ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS
