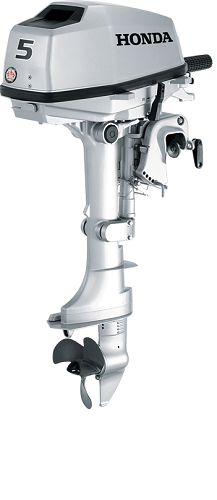

05.0 hp Long Shaft 4stroke Honda BF5DH LHNU Outboard Engine

1,524.19 excl. VAT and shipping

Engine

Type 4-Stroke OHV, 1 Cylinder/2 Valves
Displacement 127 cc (7.8 cubic inches)
Bore & Stroke 60 mm x 45 mm (2.4 x 1.8 inches)
Full Throttle RPM Range 4,500-5,500 RPM
Rated Power 5 HP @ 5,500 RPM
Cooling System Water Cooled
Fuel Delivery 1 Carburetor
Internal Fuel Tank Capacity 1.5L (.39 gal.)
Ignition System Digital CDI
Starting System Recoil
Exhaust Under Water, Above Propeller
Lubrication Wet Sump
Trim Range 5-Stage 5°-9°-13°-17°-21°
Tilt Range 70°

Drive

Gear Ratio 2.08:1
Gear Shift F-N-R
Alternator Opt. 6-Amp
Propeller 3-Blade Aluminum
Diameter x Pitch 7⅞ x 7½ inches
Available Optional Propellers 3.000
Oil Pressure Alert Standard
Low Oil Pressure RPM Reduction Standard
External Fuel Tank Connector Standard
Decompression Mechanism Standard
One-Touch Stop Button Standard

Dimensions

Overall Width 347 mm/13.66 in.

Transom Height

S Type 434 mm/15 in.
L Type 561 mm/20 in.

Dry Weight

S-Type 27 kg/60 lb.
L-Type 27.5 kg/60.6 lb.

SKU: BF5DH LHNU Category:
