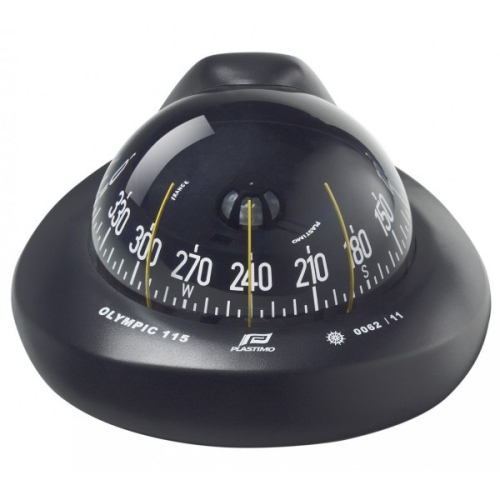

OLYMPIC 115 COMPASS
Sailboats 6 to 12 m (19 to 40 ft).
Highly stable and reliable reading, whatever the heeling angle and weather conditions.
Flushmount on horizontal surface or tilted up to 45°. Compact design and deck-hugging profile.

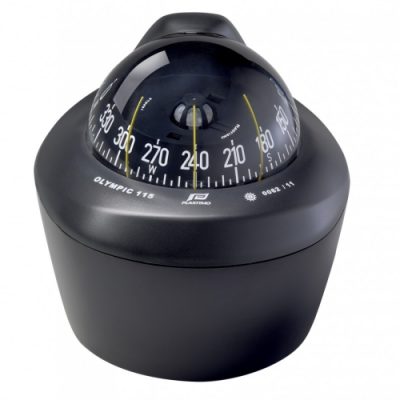

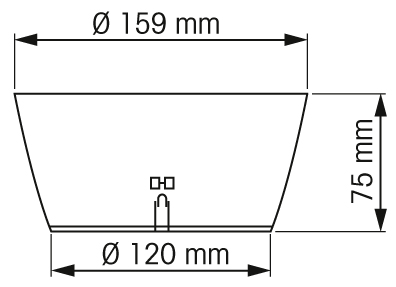

Binnacle mount optional. (Code: 61000, Price: 11,00 EUR without VAT)
All parts fully UV-treated and scratch resistant dome.
SOLAS-MED approved : equally suitable for professional fishing boats and commercial vessels.
| Boat size | Sailboat 6 to 12 m (19 to 40 ft). |
| Compass card | Conical or flat card graduated every 5°, apparent Ø 101 mm. Heading numerals every 30°. |
| Mounting |
|
| Lubber line | 3 lubber lines at 45°. |

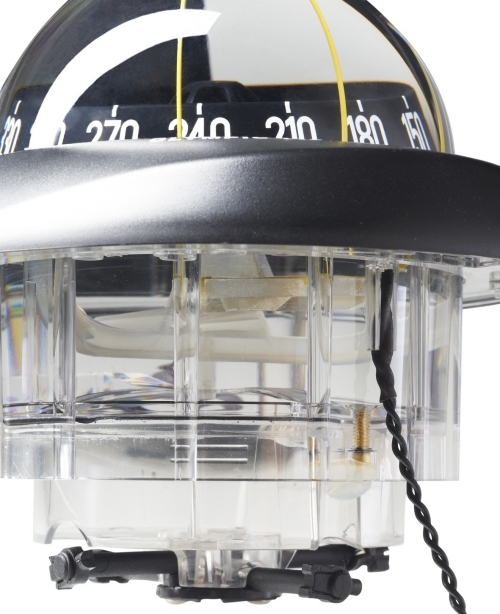

| Compensation | Included as standard feature, except inclined model (45°max). |
| Lighting | 1 LED bulb 12/24V, supplied as standard. |
| Supplied with | Protective cover, screws, drilling template. |
| Approval/homologation | SOLAS-MED 96/98. |
