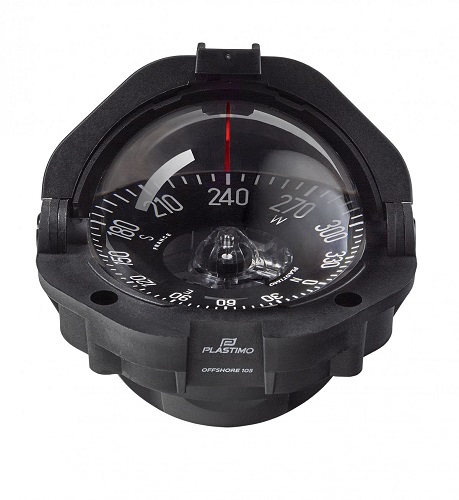

OFFSHORE 105 COMPASS
The famous Offshore compass with built-in articulated hood, most popular on open dayboats, RIB’s, power cruisers and catamarans..
Flush- or bracketmount, it adapts to all steering pods or dashboards and offers optimal readability.
Magnetic cell construction features shock absorbers for added resistance to vibrations and hull pounding.
FEATURES
| OFFSHORE 105 | |
| Boat size | Powerboats from 5 to 10 m (17-33 ft) |
| Compass card | Graduated every 5°, apparent Ø 91 mm. Heading numerals every 30°. |
| Hood/sunshade | Articulated protective hood : built-in sliding cover, composed of 3 telescopic parts. |
| Mounting | Comes as standard in a flushmount version. Can be bracket-mounted with the addition of optional bracket. |
| Resistance to shocks and hull pounding |
Magnetic cell mounted on shock absorbers. |
| Lubber line | 1 lubber line |
| Compensation | Supplied as standard |
| Lighting | LED 12/24 V |
| Approval/homologation | ISO 25862 compliant |

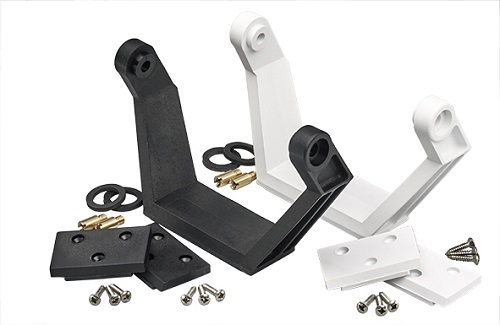

The optional bracket brings additional mounting possibilities, either on a horizontal surface avoiding to cut the instrument panel, or on a vertical bulkhead.
The bracket slides onto a fixing plate, allowing easy removal after use for complete security from theft.
Beyond a simple aesthetic preference, the bracket mounting also offers the extra advantage of isolating the compass from the dashboard, thus reducing the potential interference created by other instruments and metallic objects.
| BLACK bracket for Offshore 105 | Ref. 17268 |
| WHITE bracket for Offshore 105 | Ref. 17267 |
To obtain a bracket-mount compass, please order a flushmount compass AND a bracket.
Bracket kit includes actual bracket and bespoke screws.

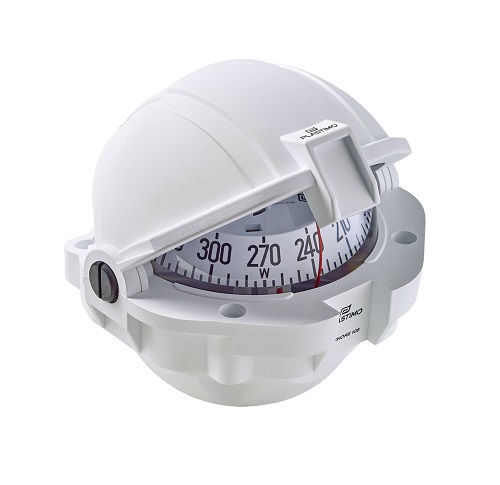

Built-in articulated hood : slide it gradually on the compass to match the light environment and avoid glare on the dome.
When totally shut, your compass is perfectly protected.
