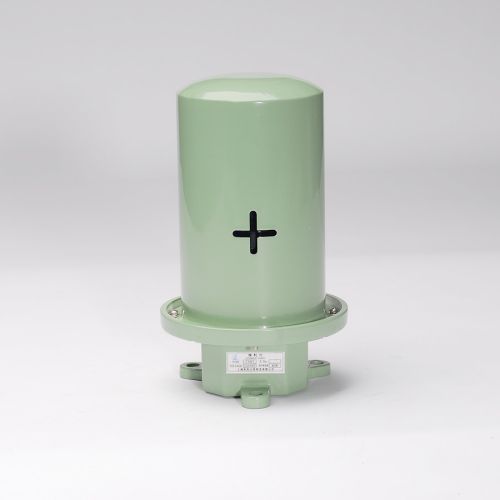

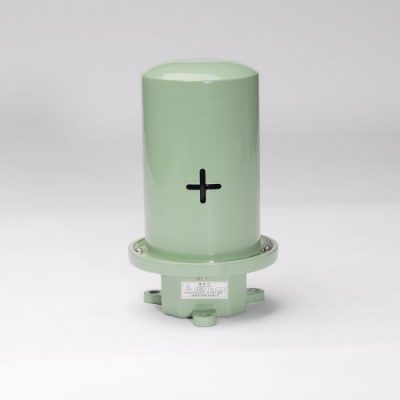

Panama Steering Navigation Light Blue Vessels >20m CXH7
188.10€ excl. VAT and shipping
| Order code | CXH7 |
| Brand code / Origin | CXH7 / China |
| Alternative codes | 3533555 |
| Impa / Issa | Un coded |
| Photo | Real |
| Degrees / Visibility | Cross / 1 nautical mile |
| Bulb / Socket | Incandescent / E27 |
| Voltage | 24VDC, 115VAC 120VAC 230VAC (inform us with each order) |
| Class / Protection | — / IP56 |

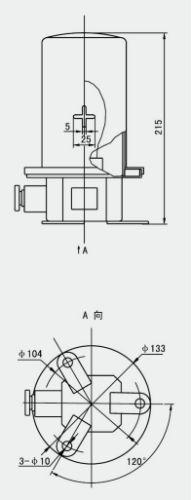

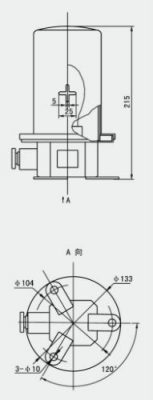

| Dimensions / Weight | 135 L x 135 W x 220 H mm / 2,236 kg |
| Packing Dimensions | 120 X 120 x 230 mm / 2,308 kg |
| Application | For vessels >20m for Panama, Kiel, St Lawrence and other Canals |
| Approval | None |
Updated 17 June 2018
Brass Panama Sterring Light
| Light Color ( Impa & Issa ) | Blue |
|---|---|
| Users Guide | Panama, Steering |
| Vessel Length (Impa & Issa ) | >50 meters, <50m, 20-50 m. |
