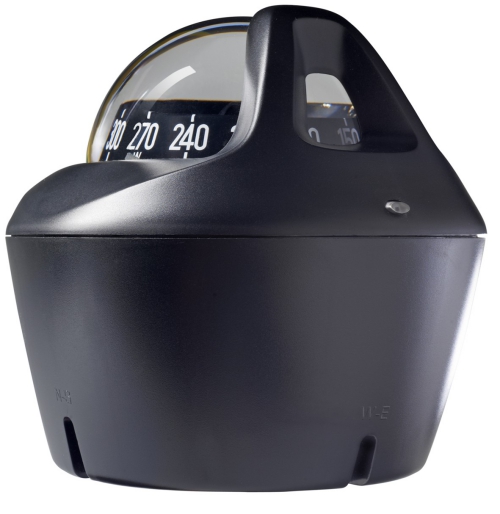

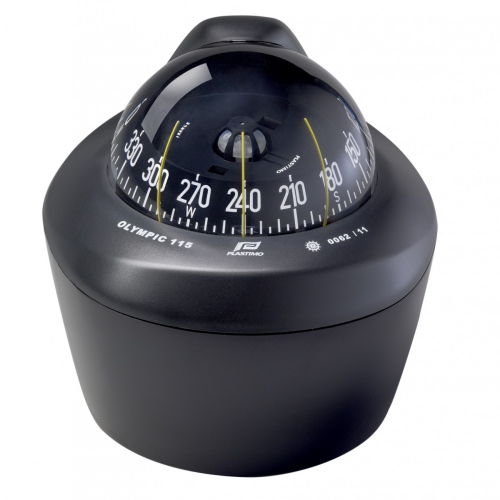

OLYMPIC 115 COMPASS
Boat 6 to 12 m (19 to 40 ft).
Highly stable and reliable reading, whatever the heeling angle and weather conditions.
Mounted on horizontal surface or tilted up to 45°. Compact design and deck-hugging profile.
All parts fully UV-treated and scratch resistant dome.
SOLAS-MED approved : equally suitable for professional fishing boats and commercial vessels.
| Boat size | Boat 6 to 12 m (19 to 40 ft). |
| Compass card | Conical card graduated every 5°, apparent Ø 101 mm. Heading numerals every 30°. |
| Mounting | On a horizontal or inclined surface, 45° max. |
| Lubber line | 3 lubber lines at 45°. |
| Compensation | Included as standard feature, except inclined model (45°max). |
| Lighting | 1 LED bulb 12/24V, supplied as standard. |
| Supplied with | Protective cover, screws, drilling template. |
| Approval/homologation | SOLAS-MED 96/98. |
