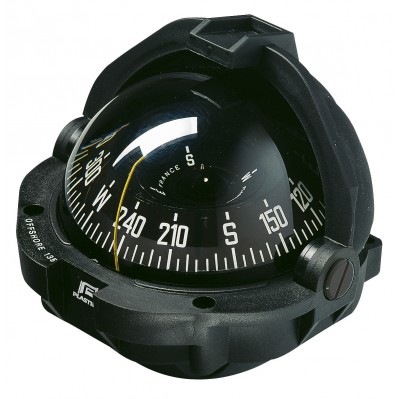

Flush mount on horizontal surface.
OFFSHORE 135 COMPASS

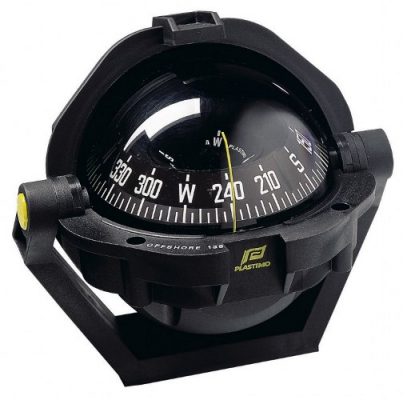

The optional bracket brings additional mounting possibilities, either on a horizontal surface avoiding to cut the instrument panel, or on a vertical bulkhead.
The bracket slides onto a fixing plate, allowing easy removal after use for complete security from theft.
Beyond a simple aesthetic preference, the bracket mounting also offers the extra advantage of isolating the compass from the dashboard, thus reducing the potential interference created by other instruments and metallic objects.
| BLACK bracket for Offshore 135 | Ref. 17260 |
| WHITE bracket for Offshore 135 | Ref. 17262 |
To obtain a bracket-mount compass, please order a flushmount compass AND a bracket.
Bracket kit includes actual bracket and bespoke screws.
On flat card models : UNIVERSAL BALANCE, one single compass around the world.
On conical card models : choose your compass according to navigation area.
* Zone A : North hemisphere (standard production = ref. 23484 or 23493)
** Zone B : South Atlantic, Indian Ocean, Central Pacific, Tahiti, Reunion Island.
*** Zone C : South Pacific, Australia, New Zealand, New Caledonia.
FEATURES
| OFFSHORE 135 | |
| Boat size | Powerboats of 10 m and above (33 ft +) |
| Compass card | Graduated every 5°, apparent Ø 130 mm. Heading numerals every 30°. |
| Hood/sunshade | Articulated protective hood : built-in sliding cover, composed of 3 telescopic parts. |
| Mounting | Comes as standard in a flushmount version. Can be bracket-mounted with the addition of optional bracket. |
| Resistance to shocks and hull pounding |
Magnetic cell mounted on shock absorbers. |
| Lubber line | 1 lubber line |
| Compensation | Supplied as standard |
| Lighting | 12-24 V LED |
| Approval/homologation | SOLAS-MED 96/98 |
Built-in articulated hood : slide it gradually on the compass to match the light environment and avoid glare on the dome.
When totally shut, your compass is perfectly protected.
