Binnacle mount on horizontal surface.

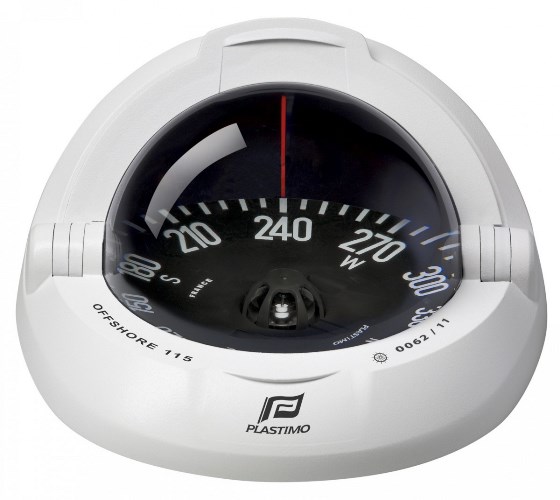

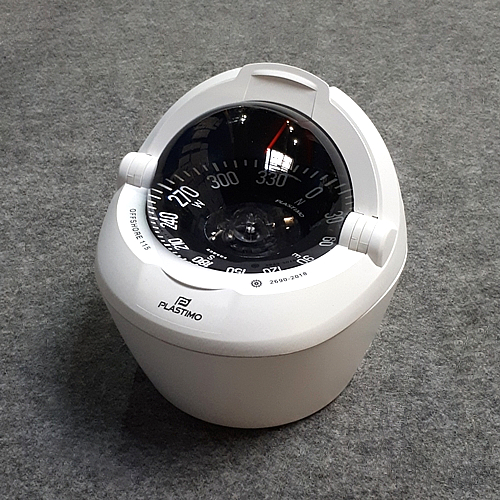

Plastimo Offshore 115 compass
UNIVERSAL BALANCE : around the world with one single compass
Features
| OFFSHORE 115 | |
| Boat size | Powerboats of 8 to 12 metres (26 to 40 ft). |
| Compass card | Flat card graduated every 5°, apparent Ø 101 mm. Heading numerals every 30°. |
| Hood | Articulated protective hood : built-in sliding cover, composed of 3 telescopic parts, with cushioned closing. |
| Mounting | Binnacle mount, on a horizontal surface only. |
| Resistance to vibrations and hull pounding |
Magnetic cell equipped with the unique “Vibration Absorber” system : minimal contact between the pivot and the sapphire cup (tested by independent laboratory). |
| Lubber line | 1 lubber line. |
| Compensation | Supplied as standard. |
| Lighting | 12-24 V LED, included. |
| Supplied with | Screws, drilling template. |
| Approval/homologation | SOLAS-MED 96/98. |
Watertight construction
• One-piece moulded flange and bowl.
• Viton® diaphragm with extreme expansion and retraction capacity : compensates the fluctuations in fluid volume caused by differences in temperature and atmospheric pressure, preventing the formation of bubbles.
Articulated hood : built-in sliding cover composed of 3 telescopic parts with cushioned closing.
Offshore 115 by night
LED lighting : Energy saving . High resistance to shocks . Increased lifetime . Same bulb is suitable for 12 or 24 V power supply.
