119.00€ excl. VAT and shipping
| Order code | CXH19-S Red |
| Brand code | CXH19-S Red |
| Impa | |
| Degrees / Visibility | 360° / 3 nautical miles |
| Lamp | Incadescend E27 |
| Voltage | 24 or 110 or 220V 40-60W |
| Protection | IP56 |
| Operating Temperature | -30 to +50 Celsius |
| Weight | 1,22 kg |

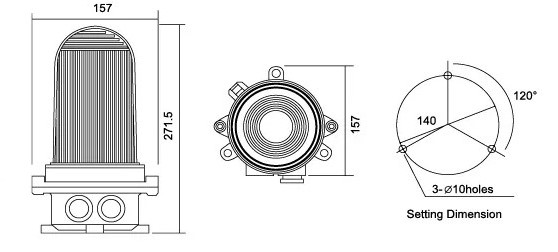

| Dimensions LxWxH | Diameter:157mm, Height:271mm |
| Application | For Ships >20m in Length |
| Approval | CCS |
| Origin | China |
For Ships over 20m in Length
1.Protection Class: IP56
3.Color:Red
4.Voltage: 24 or 110 or 220V
Power: 60W
Lamp Holder:E27
Cable Diameter: 12-16mm
Working Temperature: -30 to +50 Celsius
Diameter: 157mm
Height:271mm
Wight: 1.22kg
Packing Dimensions for the transport 25x25x20cm 1,522 kg.
| Light Color ( Impa & Issa ) | Red |
|---|---|
| Vessel Length (Impa & Issa ) | >20m, >50 meters, <50m, 20-50 m. |
| Users Guide | Signal, Suez, Suez Signall |
