ManOverBoard CF4
The signal provides 15 minutes of dense orange smoke combined with a unique 360° LED light ring for all-around visibility!. The self-activated light has a minimum output of 2 candela for at least 2 hours.

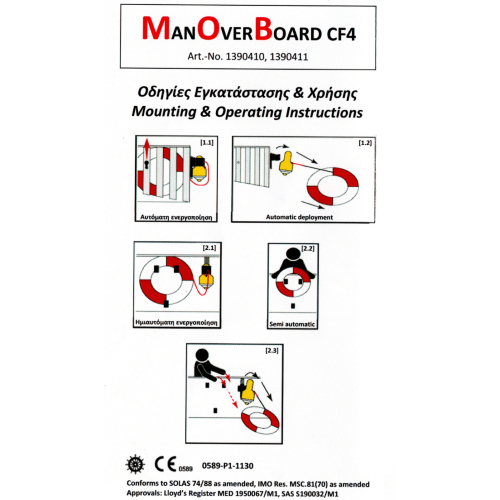

It is automatically deployed – by releasing an attached lifebuoy – or can be manually activated.
Approved mounting height is 30 meters but the manufacturer tested and permitted up to 200 meters to qualify the ManOverBoard CF4 far beyond the traditional shipping for use on oil and gas rigs, offshore wind turbines an aircrafts.
The signal is designed to be “fit and forget” for its entire service life.
A light test can be performed if required.
| TECHNICAL DATA | |||
|
HEIGHT:
|
325mm
|
Light Burning time:
|
at least 2 h
|
|
Diameter:
|
175mm bottom 85 mm
|
Colour of smoke
|
orange
|
|
Weight:
|
2,750 kg
|
Smoke duration:
|
15 min.
|
|
NEX:Max:
|
1,0 kg
|
Light output:
|
2 cd
|
|
Drop height
|
200 m by manufacturer
|
Light technology:
|
LED
|
|
P A C K I N G & T R A N S P O R T I N F O R M A T I O N
|
|
|
Hazard class:
|
1.4S
|
|
UN-NR:
|
0507
|
|
Proper Shipping Name:
|
SIGNALS, SMOKE
|
| A P P R O V A L S | |
|
Conforming to SOLAS 74/96 + extensions, Resolutions MSC.81(70) + extensions
|

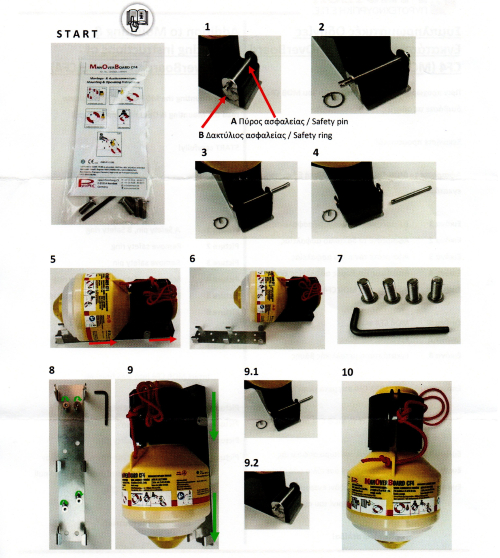

Premium bracket system
Easy installation and handling
MOB replacement without tools
9 years warranty on wall bracket
