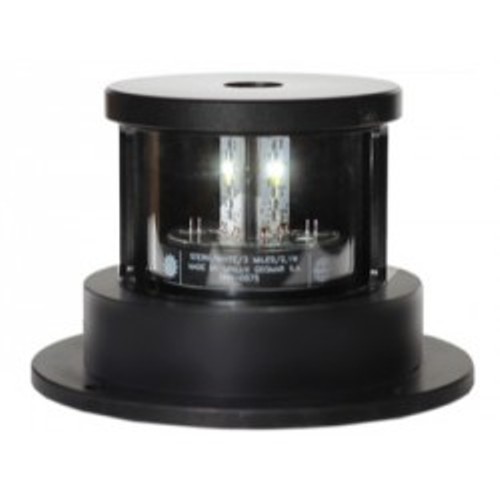

S50 Led Navigation Light
S50 Led
New
This S50 Led Light has been developed for all sea going vessels with a lenght of 20 meters or more According to International Regulations for Preventing Collisions at Sea 1972 (72 COLREGS – IMO72), EN-ISO 14744 and EN 60945 (2002).
Fully resistant to sea environment, Non magnetic and Integrated terminal box in every light.
Optionals
Delivery of custom made lights upon request
DNV-GL | MED Certificate
| Starboard | ||||||||
| 112,5o | ||||||||
| 3nm | ||||||||
| Green |
| Height | 89,5 mm |
| Weight | 1 kg |
| Round Base diameter | 133 mm |
| Housing | Black anodized seawater resistant aluminum |
| Window material | Borosilicate glass |
| Operational temperature | From -25° C to +55° C |
| Protection | IP 68 |
| Lifetime | Approx. 50.000 hours for main plus 50.000 hours for spare light (main and spare light combined in the same module) |
| Power Supply | 24 V |
| Power consumption | 3-15W |
| Mounting and cable connection | 1,5 m electric hose |
| Approvals | DNV-GL | MED Certificate |
| Regulations | EN-ISO 14744 and EN 60945 (2002) |
| Vessels Lenght | 20 meters to 50 meters or more |
| Purpose | Civil operations |
| Lamp technology | LED |
